Sawdust Charcoal Biomass Briquette Making Machine 460kg/H

    Buy cheap Sawdust Charcoal Biomass Briquette Making Machine 460kg/H from wholesalers

    Buy cheap Sawdust Charcoal Biomass Briquette Making Machine 460kg/H from wholesalers
    • Buy cheap Sawdust Charcoal Biomass Briquette Making Machine 460kg/H from wholesalers
    • Buy cheap Sawdust Charcoal Biomass Briquette Making Machine 460kg/H from wholesalers

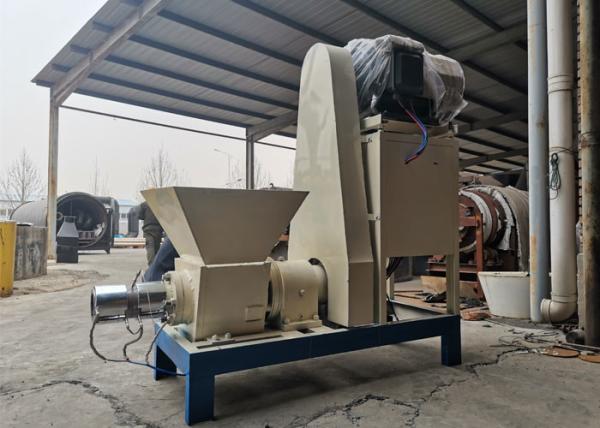

    Sawdust Charcoal Biomass Briquette Making Machine 460kg/H

    Ask Lasest Price
    Brand Name : sanjin
    Model Number : 500
    Certification : CE ISO
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10 Set/Sets per Month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Sawdust Charcoal Biomass Briquette Making Machine 460kg/H

    Biomass Sawdust Coal/Charcoal Briquettes Making Machine/Charcoal Rod Machine
    Technical parameters of Biomass Sawdust Coal/Charcoal Briquettes Making Machine/Charcoal Rod Machine
    Model
    IV
    V
    80
    500
    Power
    15KW
    18.5KW
    22KW
    22KW
    Capacity
    140-200kg/h
    220-260kg/h
    500-550kg/h
    360-460kg.h
    Dimension
    1.67*0.68*1.55m
    1.67*0.68*1.55m
    1.9*0.68*1.6m
    1.9*0.68*1.6m
    Diameter of briquette
    50mm
    50mm
    80mm
    50,60,70,80mm
    Intel particle size
    ≤5mm
    Raw material moisture
    8-12%

    Sawdust Charcoal Biomass Briquette Making Machine 460kg/H
    Sawdust Charcoal Biomass Briquette Making Machine 460kg/H
    Sawdust Charcoal Biomass Briquette Making Machine 460kg/H

    Introduction of Biomass Sawdust Coal/Charcoal Briquettes Making Machine/Charcoal Rod Machine

    Biomass rod making machine is to press biomass, rice husk, crops straw (maize straw, soybean straw and others) or other carbonic materials into solid fuel rods under the condition of high temperature and high pressure. The machine is widely used in power plants, chemical, energy, heating industry.


    The working principle of Biomass Sawdust Coal/Charcoal Briquettes Making Machine/Charcoal Rod Machine

    After putting powdery materials into the machine inlet, the motor drives the screw to rotate to press them into different shapes of six arris or other forms.
    Sleeves can be easily changed. Different shapes of sleeves make different shapes of products.

    1. Crush the raw material into small pieces (size is about 3-5mm), if your raw material size is big;
    2. Dry the material by the dryer machine or dried it in the sun, till the moisture is less than 8%- 12%; if your raw material moisture content is higher than 8-12%;
    3. Put the dried material into feeding inlet of briquette machine by worker or by screw conveyor;
    4. Produce the briquette from the dried material without any additive by the wood briquette machine;
    5. Carbonized the briquette and become charcoal briquette.


    Raw material request of Biomass Sawdust Coal/Charcoal Briquettes Making Machine/Charcoal Rod Machine

    Almost any biomass can be briquetted. the wood sawdust biomass briquette machine are using Saw Dust, Bamboo dust, Bagasse, Cotton Stalk, Coffee husk, Groundnut Shell, Mustard Husk/Stalk, Pine Needles, Rice Husk, Sugar Mill Waste, Jute waste, Coir pith and other wastes & residues like Castor Shell, Red Gram Stalk, Tobacco stem, Tea Waste, Sander Dust, Tree Bark, Wild Grasses & Shrubs and Sander dust etc. can be also be briquetted individually or in combination without using any binder.


    Finished Product of charcoal making machine
    After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood. This bio-fuel briquette is 50-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder with a 15-20mm hole through the body.


    Pre-Sales Service

    * Inquiry and consulting support swiftly

    * View our factory

    * Using your mailed sample to test the machine


    After-Sales Service

    * Training how to install the machine and how to use the machine

    * Engineers available to service machinery overseas


    If you have any questions about the machine or our company, please contact us freely. We will response swiftly and do our best to meet your demand.
