New Style Charred Wood Rotary Machine sri Lanka Coconut Shell Charcoal Machine

    Buy cheap New Style Charred Wood Rotary Machine sri Lanka Coconut Shell Charcoal Machine from wholesalers

    Buy cheap New Style Charred Wood Rotary Machine sri Lanka Coconut Shell Charcoal Machine from wholesalers
    • Buy cheap New Style Charred Wood Rotary Machine sri Lanka Coconut Shell Charcoal Machine from wholesalers

    New Style Charred Wood Rotary Machine sri Lanka Coconut Shell Charcoal Machine

    Ask Lasest Price
    Brand Name : Sanjin
    Model Number : LXS-1000
    Certification : CE
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5set per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    New Style Charred Wood Rotary Machine sri Lanka Coconut Shell Charcoal Machine

    Continuous Type Smokeless Rotary Carbonization Furnace / Coconut Shell Biochar kiln Charcoal Making Machine

    Technical parameters of Continuous Type Smokeless Rotary Carbonization Furnace / Coconut Shell Biochar kiln Charcoal Making Machine

    ModelLXT-800LXT-1000LXT-1200
    Power(KW)3+3+7.5+33+3+7.5+33+3+15+3
    diameter*length (MM)800*10001000*10001200*1000
    Capacity400-600kg/h700-1000kg/h1000-1300kg/h
    Primary heating unitA121214
    The host base10*1.25*110*1.45*110*1.64*1

    Cooling discharging

    dimension (MM)

    1200*29001200*29001500*2900
    The feed temperature350-450℃
    The raw material size≤3cm
    The raw material moisture≤15

    Quality assurance:

    1) Simple structure in linear type ,easy in installation and maintation.
    2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
    3) High pressure double crank to control the die opening and closing.
    4) Running in a high automatization and intellectualization,no pollution
    5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.


    Detailed Images of Continuous Type Smokeless Rotary Carbonization Furnace / Coconut Shell Biochar kiln Charcoal Making Machine

    Product Introduction of Continuous Type Smokeless Rotary Carbonization Furnace / Coconut Shell Biochar kiln Charcoal Making Machine
    Continuous carbonization furnace is a new type of environmentally friendly carbonization equipment. The biomass material is converted to charcoal after passing through a carbonization stove and can be further processed. Compared with other carbonization equipment, this carbonization stove is suitable for charring of sawdust, rice husk, palm shell, coconut shell and other materials, and can work continuously for 24 hours to achieve high output, so it is called continuous carbonization furnace. The entire production process does not produce harmful gases, does not pollute the environment, and is excellent in various carbonization furnaces.

    Working principle of Continuous Type Smokeless Rotary Carbonization Furnace / Coconut Shell Biochar kiln Charcoal Making Machine

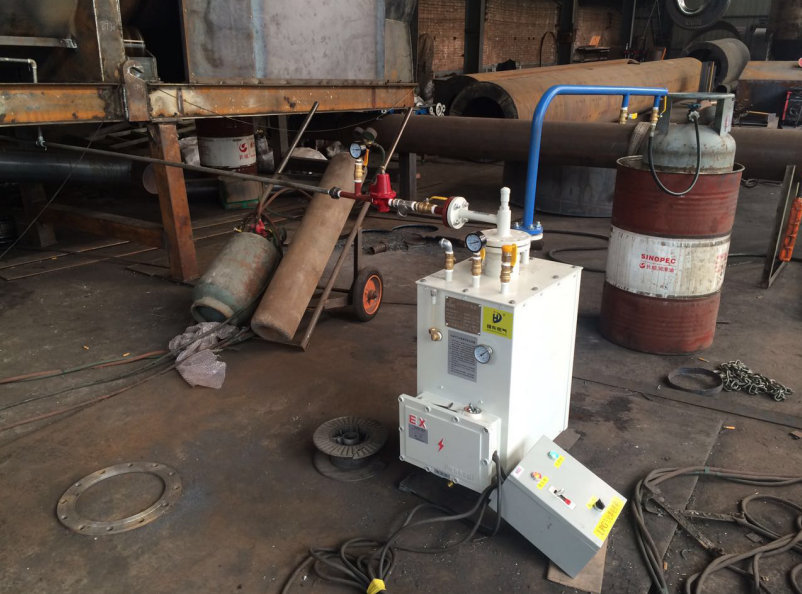

    After the continuous carbonization furnace is operated, the furnace body is heated by an external heating method (natural gas, liquefied gas, etc.), and then the raw materials are put, and the raw materials are thermally decomposed in a closed environment to generate a large amount of acetic acid, methanol, wood tar and other liquid products; also produced combustible gases such as methane and ethylene. These flammable gases are treated by flue gas purification, and are returned to the carbonization machine for burning, providing heat to the carbonization furnace, increasing the furnace temperature, and generating carbon at high temperatures.


    Main Features of Continuous Type Smokeless Rotary Carbonization Furnace / Coconut Shell Biochar kiln Charcoal Making Machine

    1. configuration the early stage of the new type gasifier gasification; 2. configuration of flue gas purification, heat exchange system, cooling system, heat steam into water, flue gas can be converted to gas recycling; 3. configuration frequency conversion feeding machine, automatic feeding, feeding speed is adjustable; 4. configuration rotary carbonation host, meet the production requirements; 5. configuration cooling discharging machine cooling products, output, product; 6. configuration control cabinet, temperature, speed regulation, drum PLC automatic control cabinet, the equipment for carbonized color display, production status should be clear;


    Final product


    Our clients
