Horizontal airflow carbonization furnace
Introduction:
Airflow coking furnace was developed by our factory latest modular
air coking furnace, more than a day can be carbonized furnace,
greatly shorten the production cycle, improve the efficiency of
charcoal production, is an ideal equipment of large and medium
scale charcoal production of charcoal.It uses a unique storage
chamber structure, make full use of the flue gas produced by
carbonization.In addition to their use of the stove, achieve energy
conservation and environmental protection
requirements.Energy-saving air coking furnace: simple and
convenient, need not power and mobile production.It is an ideal
equipment of family scale production
Advantage:
1. It adopts the advanced carbonized technology heat flow,carbonized
rate increased significantly,
2. The carbonized rate is about 80%, up by 99%.And the operation is
very convenient, good safety,
3. High production efficiency,can save a lot of energy, good
environmental protection performance.
4. Shunt can also dry burning boiler flue gas and so on.Truly the
charcoal,gas and oil range of equipment.
5. Is currently the world's most advanced carbonization furnace.
Main technical data:
Model | Output | Dimension | weight |
120 | 2000kg/24h | 2.86*1.6*2.1m | 1.68t |
170 | 4000kg/24h | 2.85*2.1*2.1m | 3t |
170 | 7000kg/24h | 4.60*2.1*2.1m | 3.5t |

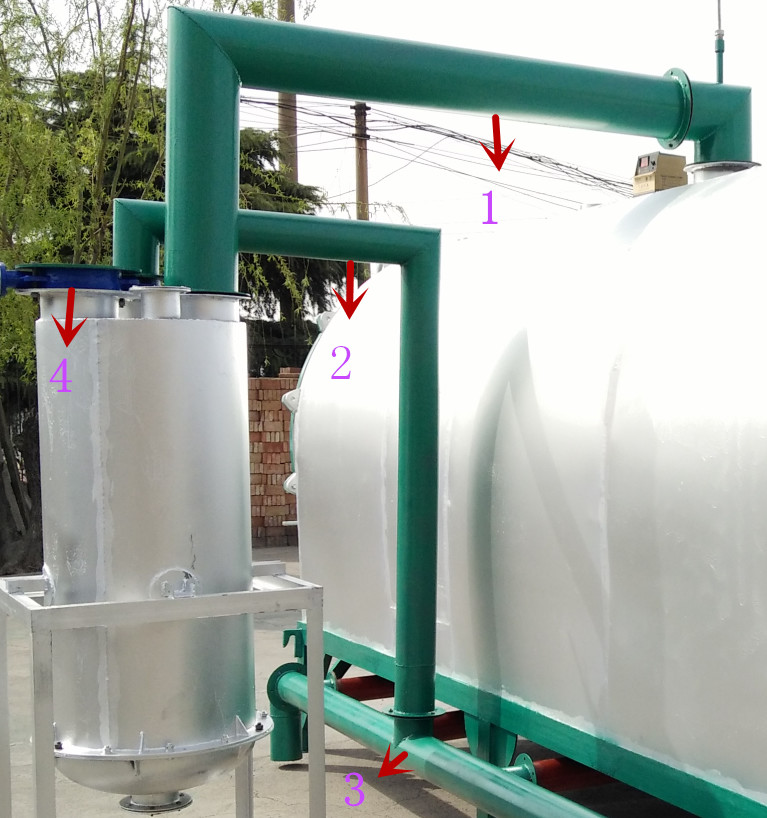

No.1 is the pipe of smoke into :the fuel gas produced by the
furnace can through this pipe into the shunt tank
No.2 is the pipe of smoke out:the fuel gas after purification
filter through this pipe into the bottom of the furnace.
No.3 is the burnning pipe:the fuel gas through this pipe to heating
the furnace.
No.4 isthestandby valve :this valve can connect anothe furnace
,also the extra fuel gas canm ue for drying, heating, burning
boiler etc
Finished charcoal
Gongyi city sanjin charcoal factory was built in 1988, is located
in gongyi city in henan province.Is a technology leading
enterprises, the People's Republic of China import and export
enterprises, charcoal machine won the national patents 10.Company
main products: charcoal, charcoal machine automation equipment,
series of straw gasifier, straw gasification, carbon powder molding
machine, grinder, sawdust dryer, stick machine, such as coking
furnace large biomass equipment production
