Metal Dust Coal Powder Briquette Charcoal Extruder Machine

    Buy cheap Metal Dust Coal Powder Briquette Charcoal Extruder Machine from wholesalers

    Buy cheap Metal Dust Coal Powder Briquette Charcoal Extruder Machine from wholesalers
    • Buy cheap Metal Dust Coal Powder Briquette Charcoal Extruder Machine from wholesalers
    • Buy cheap Metal Dust Coal Powder Briquette Charcoal Extruder Machine from wholesalers

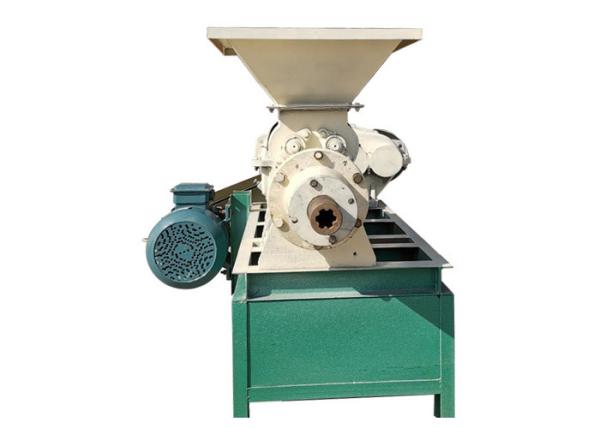

    Metal Dust Coal Powder Briquette Charcoal Extruder Machine

    Ask Lasest Price
    Brand Name : SANJIN
    Model Number : MBJ140
    Certification : CE ISO
    Price : $2,100.00-$3,000.00/ Set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 Set/Sets per Month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Metal Dust Coal Powder Briquette Charcoal Extruder Machine

    Excellent Coal Charcoal Powder Metal Dust Briquette Making Machine
    Technical parameters:
    TypeMBJ-140MBJ-180
    Power11KW18.5KW
    Capacity1-2T/H2-3T/H
    Spindle speed46-60(r/min)38-50(r/min)
    Diameter of fianl product30-40mm30-60mm
    Weight700kg900kg
    Product Description:
    Charcoal extruder/charcoal briquette machine is mainly used to use the screw extrusion principle to process charcoal powder mixed with a certain proportion of liquid binder into different bar shapes and size of briquettes, with certain strength.The utilization of this machine can make full use of the charcoal powder material, you do not need to mix the material with lime, it reduces the cost of fuel, and improves the calorific value of raw material.

    Main Features

    1) Energy saving and envirenmentally freindly, turn waste into treasure.

    2) Reasonable structure, easy in operation, installation and maintation. Low price, less power consumption, easy to move.

    3) Running in a high automatization and intellectualization, no pollution, high efficiency, high-performance.

    Charcoal extruder principle of work:

    Charcoal extruder , which can make the powder of charcoal to different charcoal blocks shapes.

    The working principle of charcoal extruder is: The motor transmits power to transmission through the V-belt. At the same time, the transmission output shaft transmits power to propeller through the floating coupling, and the thruster of propeller push forward charcoal through forming die to produce the ideal high-pressure charcoal-stick.

    Detailed Images:
    Metal Dust Coal Powder Briquette Charcoal Extruder Machine
    different mold:
    Metal Dust Coal Powder Briquette Charcoal Extruder Machine
    Metal Dust Coal Powder Briquette Charcoal Extruder Machine
    Metal Dust Coal Powder Briquette Charcoal Extruder Machine
    Before sale sevice

    We can offer full scale service to our customers by developing projects from blueprint , customized solution, machinery production to installation and commission of complete plants .Before sending the machine, we will test and adjust the machine, the buyer can use machine directly.we supply user manual with each machine,it's include operation and normal maintance .we also supply operation video to help the user operater easily .


    After sale service

    Victor provides technical support and fittings for life.All machines ordered from our company are guaranteed to keep in good repair for one year. If the buyer are caught in some problems when using our machine, welcome to contact us at any time.


    Company Introduction:
    Gongyi city sanjin charcoal factory was built in 1988, is located in gongyi city in henan province.Is a technology leading enterprises, the People's Republic of China import and export enterprises, charcoal machine won the national patents 10.Company main products: charcoal, charcoal machine automation equipment, series of straw gasifier, straw gasification, carbon powder molding machine, grinder, sawdust dryer, stick machine, such as coking furnace large biomass equipment production line. In nearly 20 years of development, our factory together industry elite, professional and technical, fall in love.
    "Sanjin machinery" from a single charcoal machine equipment development to the series of power plant equipment, have three series more than 30 varieties of mechanical products.I plant strong technical force, advanced production technology and equipment, perfect testing and test methods, excellent technical and after-sales service, continuous new product technology improvement, make our products always in the leading level at home and abroad, and won the national patents 10.Has been exporte to Britain, Russia, Malaysia, Indonesia, Vietnam and other countries and regions, favored by customers at home and abroad and praise, has a higher market share in domestic and foreign markets
