Barbecue 3t/H Briquette Charcoal Extruder Machine

Ask Lasest Price
Brand Name :	SANJIN
Model Number :	MBJ140
Certification :	CE ISO
Price :
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	20 Set/Sets per Month
Delivery Time :	3-7 days

Add to Cart

Product Details
Company Profile

Barbecue 3t/H Briquette Charcoal Extruder Machine

Full Automatic Charcoal Stick Extruder Briquette Making Machine

Technical parameters:

Type	MBJ-140	MBJ-180
Power	A11KW	18.5KW
Capacity	1-2T/H	2-3T/H
Spindle speed	46-60(r/min)	38-50(r/min)
Diameter of fianl product	30-40mm	30-60mm
Weight	700kg	900kg

Product Description of Full Automatic Charcoal Stick Extruder Briquette Making Machine:

Coal stick machine is one of the main machine in our plant , it is mainly used to use the screw extrusion principle to process charcoal powder mixed with a certain proportion of liquid binder into different bar shapes and size of briquettes, with certain strength, also you can choose to make the briquettes with or without a hole in the core part. The utilization of this machine can make full use of the charcoal powder material, you do not need to mix the material with lime, it reduces the cost of fuel, and improves the calorific value of raw material.

Detailed Images of Full Automatic Charcoal Stick Extruder Briquette Making Machine:

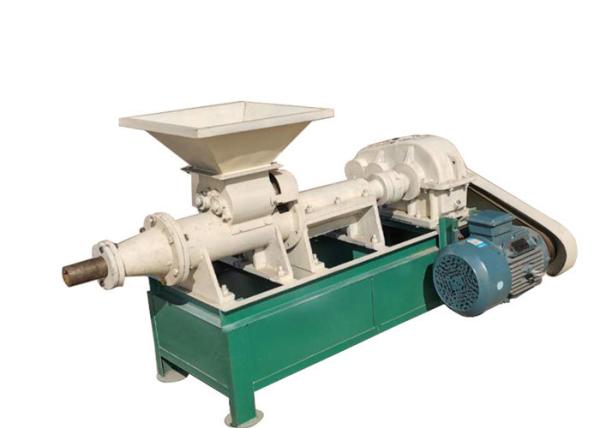

Barbecue 3t/H Briquette Charcoal Extruder Machine

different mold:

The raw material of Full Automatic Charcoal Stick Extruder Briquette Making Machine:

The raw material Extruder Briquette Making Machine can be charcoal powder , wood charcoal powder . coconut shell charcoal powder , rice husk charcoal powder.charcoal dust , coal powder . the most suitable size of the powder is less than 5mm . the mositure of the powder should be 12-14%

High Quality 3-5t/H Industrial Charcoal Powder Extruder/Coal Briquette Making Machine For Sale

Full Automatic Charcoal Stick Extruder Briquette Making Machine principle of work:

Charcoal extruder , which can make the powder of charcoal to different charcoal blocks shapes.

The working principle of charcoal extruder is: The motor transmits power to transmission through the V-belt. At the same time, the transmission output shaft transmits power to propeller through the floating coupling, and the thruster of propeller push forward charcoal through forming die to produce the ideal high-pressure charcoal-stick.

About shipping

1, Small size equipment is packed by wooden case which delivery by LCL shipping .

2, Big size equipment is nude packing which delivery by full container load,small parts will be packed into wooden case.

3, Special packing requirement as customers requirement .Small sawdust briquette coal making machine.

Specifications:

1. Supply to USA,Europe,and Australian
2. Material: rice husk,sawdust,Peanut shells, bagasse
3. Professional charcoal machine supplier
4. Energy saving

We all know that environment is so important to ourselves and our future generations. Natural resources have been depleted in an unprecedented scale. The environment has been polluted in a way that never happened before. It is certain that the world and all the living organism on it are going straight to hell. But why those in power, no matter how loud they speak out environmental protection, very few of them really care. The reason is simple. Human beings are greedy in nature. In ancient times, technology is lacking, human beings did not have the right tool to exploit the nature on large scale. With industrial revolution and the development of science and technology, these things can be achieved with relative ease. It can be said that the development of science can be a gospel and a curse on human race at the same time. It is more than certain that the world is going straight to hell. Climate change comes at an unprecedented rate. We can see all the polar ice sheet melt in our own lifetime. Cities by the sea will be flooded. Summer will get unbearably hot. Almost all the natural resources will be depleted. It is not that world leaders are unaware of this , but because of their greed no one is able to put the interest of the general public and future generations over their own pride. Development sounds an untouchable truth. Anything that comes in its way will be neglected. One thing that we never ponder is that the space and resources on this planet is limited which means that the raw material and space for development is also limited. Now matter how great and intelligent human beings might be, we have our own weakness. The more intelligent a creature is, the more physically vulnerable it is. With the worsening of the living environment, one can rarely predict that how many of us will eventually survive this unprecedented change. It is time for us to think whether we should live in a more environmentally friendly manner so that our offsprings will also have space and resources to live with or we just pamper ourselves to the extreme and forget about our future generation and the human race at large.
