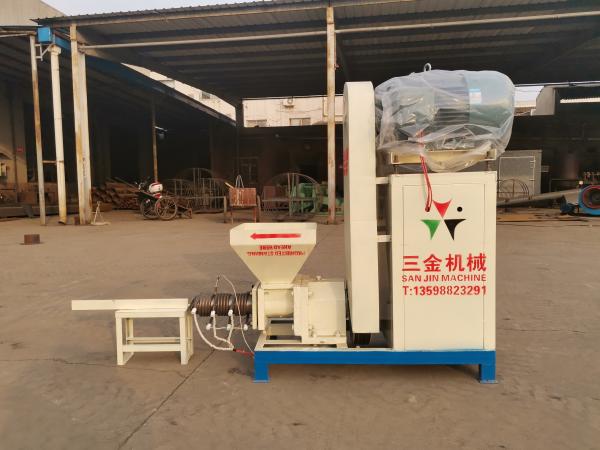

    Wood Agriculture Biomass Briquette Making Machine

    Ask Lasest Price
    Brand Name : sanjin
    Model Number : 500
    Certification : CE ISO
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10 Set/Sets per Month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Wood Agriculture Biomass Briquette Making Machine

    Sawdust Wood Waste Chip Screw Type Briquette Machine Factory
    Technical parameters of Sawdust Wood Waste Chip Screw Type Briquette Machine Factory​:
    Model
    IV
    V
    80
    500
    Power
    15KW
    18.5KW
    22KW
    22KW
    Capacity
    140-200kg/h
    220-260kg/h
    500-550kg/h
    360-460kg.h
    Dimension
    1.67*0.68*1.55m
    1.67*0.68*1.55m
    1.9*0.68*1.6m
    1.9*0.68*1.6m
    Diameter of briquette
    50mm
    50mm
    80mm
    50,60,70,80mm
    Intel particle size
    ≤5mm
    Raw material moisture
    8-12%

    Introduction of Sawdust Wood Waste Chip Screw Type Briquette Machine Factory​:

    1. Briquette stick making machine takes wood, sawdust, rice husk, coconut shell, peanut shell, plant stalk, and other wood materials as feeding materials ( no any additives) to make stick shape briquettes under the condition of high pressure and temperature;

    2. The outlet wood briquettes has the features of high density, small volume, which can take place of fuel wood and coal;

    3. The common diameter wood briquettes is 50-80mm, and the shape can be square, hexagonal shape and round with a hole in the center.


    Advantage of Sawdust Wood Waste Chip Screw Type Briquette Machine Factory​:

    1. Widespread and common raw materials

    2. Wide application:

    3. High density, small volume,good flammability;

    4. Energy saving,no smoke,no additive,environment friendly.


    Raw material request ofSawdust Wood Waste Chip Screw Type Briquette Machine Factory​:

    1. The feeding materials of wood briquette machine can be waste wood branch, sawdust, coconut shell, peanut shell, rice husk and other agriculture materials;

    2. The inlet size of raw materials should be 3-5mm. If the raw materials are bigger than 5mm, should crush the raw material firstly;

    3. The inlet moisture of raw materials should be 8-12%, otherwise, the outlet wood briquettes are easy broken and have crevice. So before briquetting, the wet materials should be dried.

    Wood Agriculture Biomass Briquette Making Machine
    Wood Agriculture Biomass Briquette Making Machine

    Briquettes from the wood briquette machine:

    1.The size: diameter of outlet briquettes can be 50-80mm;

    2.The shape: the outlet briquettes of woodbriquette machine can be round, square, hexigonal stick shape;

    3. The features: the outlet briquettes are with high density, good appearance, small in size, etc.

    Wood Agriculture Biomass Briquette Making Machine

    When begin to work,the heating circle heat the machine,then wood briqutte machine can press sawdust without any binder, sawdust pressed by high temperature and high pressure , then the screw press sawust forward,extrusion into a rod-shaped solid rod with center hole.

    Features of charcoal briquette machine

    1.High efficiency:20 seconds 60cm briquette,250-300kg/h

    2.Screw propeller adopts precision casting, special wear-resisting material life for more than ten times higher than that of traditional thrusters.Forming sleeve adopts special formula alloy precision casting, life can be up to 3 month; This cutting-edge technology not only makes the cost is greatly reduced, but also saves manpower.

    Biomass wood briquette making machine agriculture waste briquetting machine

    Related machines:

    1) Wood crusher: Wood crusher is used to crush straw, leaves, fruit shell, tree branches, wood sawdust, wood chips, etc. into fine powder whose dimension less than 3mm.

    2) Dryer: Dry biomass powder to make sure the powder's humidity less than 12%.

    3) Wood briquette machine: Use screw biomass briquette machine to shape biomass

    powder into briquettes.Sugarcane firewood sawdust rice husk charcoal briquette press charcoal making machine

    4) Carbonization furnace: If you want to make briquette charcoal , we need carbonization furnace to burn biomass briquettes into charcoal briquettes.
