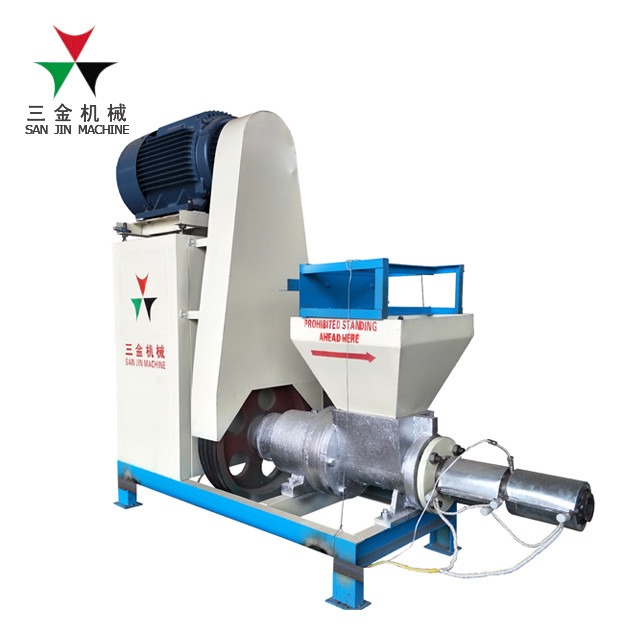

Introduction of Sawdust Briquette Machine/ Charcoal Briquette Machine/Briquette
Production Line:
High production and low loss,using the raw material of wood
sawdust, peanut shell,corn cob, bagasse, cotton stalk, corn stalks,
rice hull, miscellaneous branches etc shattered into granular.
Within 3 to 5 mm by sawdust crusher; then the dryer dry material
till water content is within 12%; through high temperature, high
pressure of molding (do not add any additives) of the bar machine
to the process of carbonization of coking furnace, then finished
product of charcoal formed.
Working principle of the machine Sawdust Briquette Machine/
Charcoal Briquette Machine/Briquette Production Line
1. Dry the material by drying machine or dried it in the sun, till
the moisture is less than 12%.
2. Put the material into the feeding port of wood Briquette
Machine.
3. Wood Briquette Machine can produce the briquette stick from
biomass material without any additives.
Raw material request of Sawdust Briquette Machine/ Charcoal Briquette Machine/Briquette
Production Line
Sawdust, wood branches,wood, wood residues, rice husk, sunflower
shell, peanut shell, corn stalk, straw, bamboo, cotton stalk,
coconut shell, olive, furfural dregs, bagasse, corncob, corn stalk,
shurbs, and any other agricultural waste.
1.Size:smaller than 5mm , if the material can not achieve the
requirement, it should be crush first.
2.Moisture :8%-12%,If raw material has high moisture it should be
reduced by Sun drying or using flash drier.

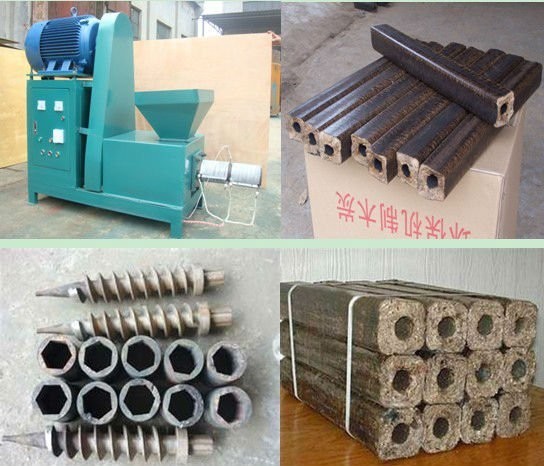

When begin to work,the heating circle heat the machine,then wood
briqutte machine can press sawdust without any binder, sawdust
pressed by high temperature and high pressure , then the screw
press sawust forward,extrusion into a rod-shaped solid rod with
center hole.
Features of charcoal briquette machine
1. Widespread and common raw materials
2. Wide application:
3. High density, small volume,good flammability;
4. Energy saving,no smoke,no additive,environment friendly.
Related machines:
1) Wood crusher: Wood crusher is used to crush straw, leaves, fruit
shell, tree branches, wood sawdust, wood chips, etc. into fine
powder whose dimension less than 3mm.
2) Dryer: Dry biomass powder to make sure the powder's humidity
less than 12%.
3) Wood briquette machine: Use screw biomass briquette machine to
shape biomass
powder into briquettes.Sugarcane firewood sawdust rice husk
charcoal briquette press charcoal making machine
4) Carbonization furnace: If you want to make briquette charcoal ,
we need carbonization furnace to burn biomass briquettes into
charcoal briquettes.
