High Effiencial Biomass Sawdust Wood Chip Wood Shaving Rotary Dryer

Technical parameters of High Effiencial Biomass Sawdust Wood Chip Wood Shaving Rotary Dryer:

Model	output Capacity(kg/h)	Power	Diameter of pipe	weight	diameter of raw material
219	200-300	4kw	200mm	600kg	≤5mm
320	500-800	7.5kw	320mm	1000kg
300	800-1000	7.5kw	300mm	1300kg
400	1000-1200	7.5kw	400mm,637mm	1800kg
GT1000	1200-1500	7.5kw+3kw	1000mm	2500kg
GT1200	1500-2000	11kw+4kw	1200mm	3500kg

Product Description of High Effiencial Biomass Sawdust Wood Chip Wood Shaving Rotary Dryer::

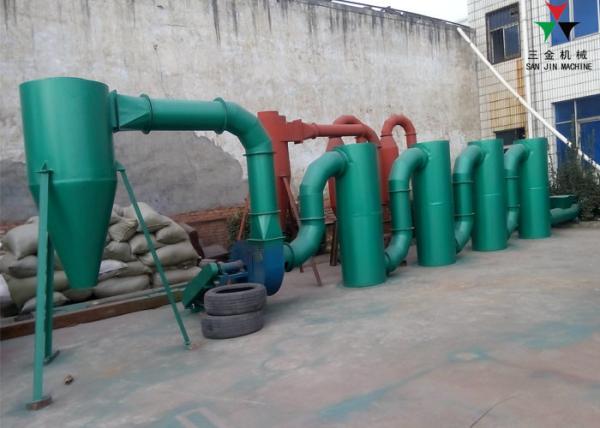

Sawdust dryer with heating furnace, feed port, rotating cylinder, delivery pipe, dust collector and discharge port. Wet material is continuously sent to the drying cylinder by a conveyor. Heat air makes full contact with the material. Being delivered and scattered by the high-speed hot air, water in the wet material is evaporated. The material gets fully dried in the rotating cylinder.

Sawdust dryer is widely used in industries like biomass fuel, wood pellet fuel, sawdust briquette, farming etc. The applicable materials are wood powder, wood shavings, sawdust, wood chipps, straws, grass, etc

The inner structure of Rotary Dryer Machine for Drying Sawdust is dryer wall plate + triangle plate,widely increase the drying efficiency, larger capacity. It is mainly used for drying wood chips,wood sawdust,efb fiber etc.

Design: spiral plate weld, accord with welding rule, it won't easily crack and deformation.

1. Are you manufacturer or Trading Company

Yes, we are professional Manufacturer

2. What is the Capacity per hour can you do?

1t/h to 20t/h.

3. Do you send engineer to clients' place to install the equipment ?

Yes, we have professional After-sales Department.

4.What kind of raw material can dry? what is the requirement?

Raw material: sawdust, agricultural staw, efb fiber, rice husk, peanut shell etc.

5. What is your Address?

Gongyi city, Henan Province.

Gongyi Sanjin charcoal machine factory was built in 1995, located in Gongyi City, Henan Province.It covers an area of about 3500 square meters and is located in the Shi hui WU industry zone.Is a biomass charcoal production equipment, set research and development, manufacturing, sales, import and export trade as one of the enterprises.It has obtained the patent technology, appearance patent and invention patent of utility model.In nearly 25 years of development, Sanjin machinery from a single charcoal machine equipment to a series of equipment, with four series of more than 30 mechanical varieties.The company's main products: charcoal machine automation equipment, charcoal equipment, shisha charcoal tablet pressing machine, drying chamber, charcoal powder molding machine, crusher, dryer,briquette making machine, carbonization furnace and other large biomass equipment production lines.Has been exported to South America, the Middle East, Southeast Asia, Africa, Oceania dozens of countries and regions, by domestic and foreign customers favor and praise.The development of society and industry competition have brought us into the era of homogenization."Sanjin Machinery" can stand out in the fierce market competition, thanks to the recognition and trust of new and old customers on Sanjin machinery products. In the future, we will continue to carry forward improving product quality as always.Adhering to the "quality is the fundamental, service is the key" purpose, abide by the "honesty, down-to-earth" faith.We sincerely hope that "Sanjin Machinery" will work side by side with you for common development in the future.
